Physical Security 2023

Complete installation of Ameristar Matrix Alpha X-Span security fence, security system, security enclosure, required foundations and cable/conduit for substation. The project included:

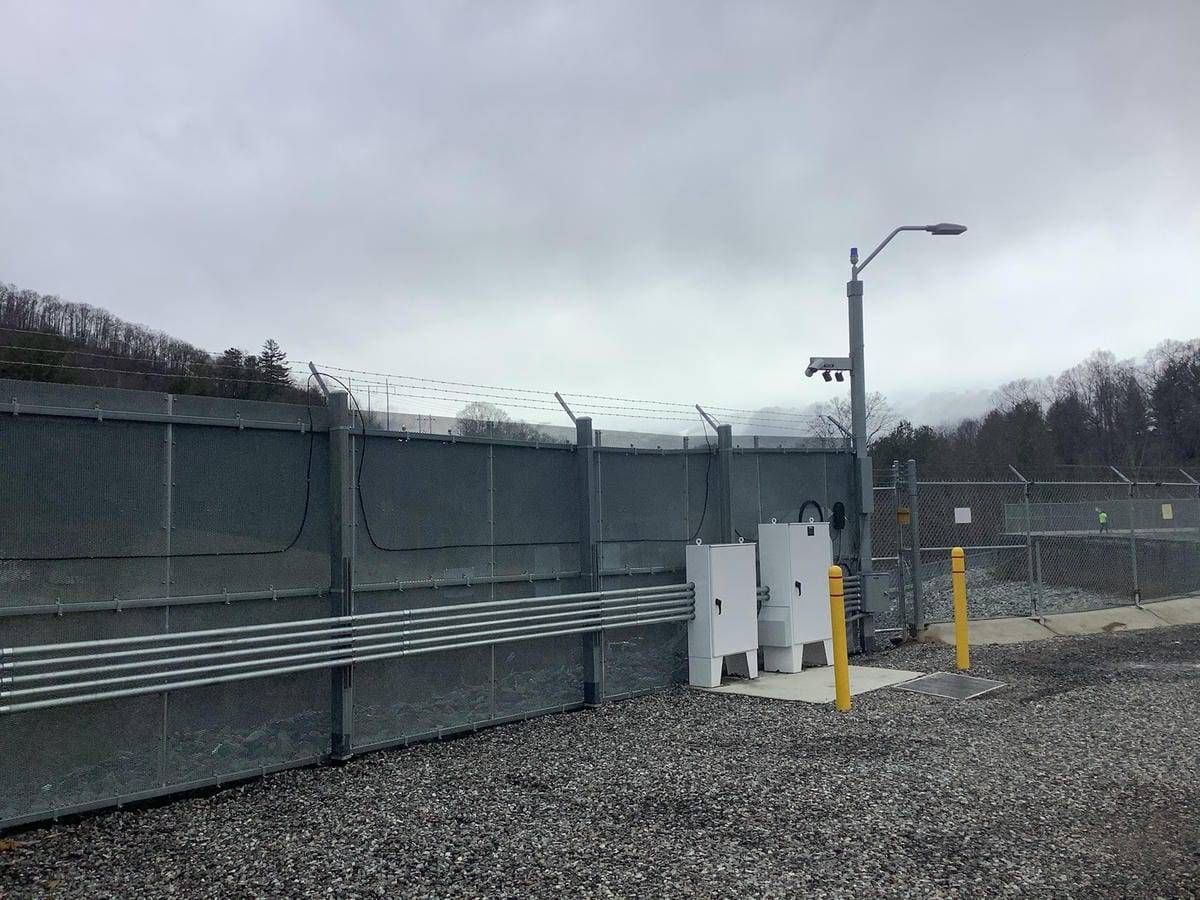

• 2,935 LF of 10 ft. tall security fence including animal guard and anti-dig welded wire
• 24 ft. wide motor-operated gate at NE entrance
• 24 ft. wide manual gate at South entrance

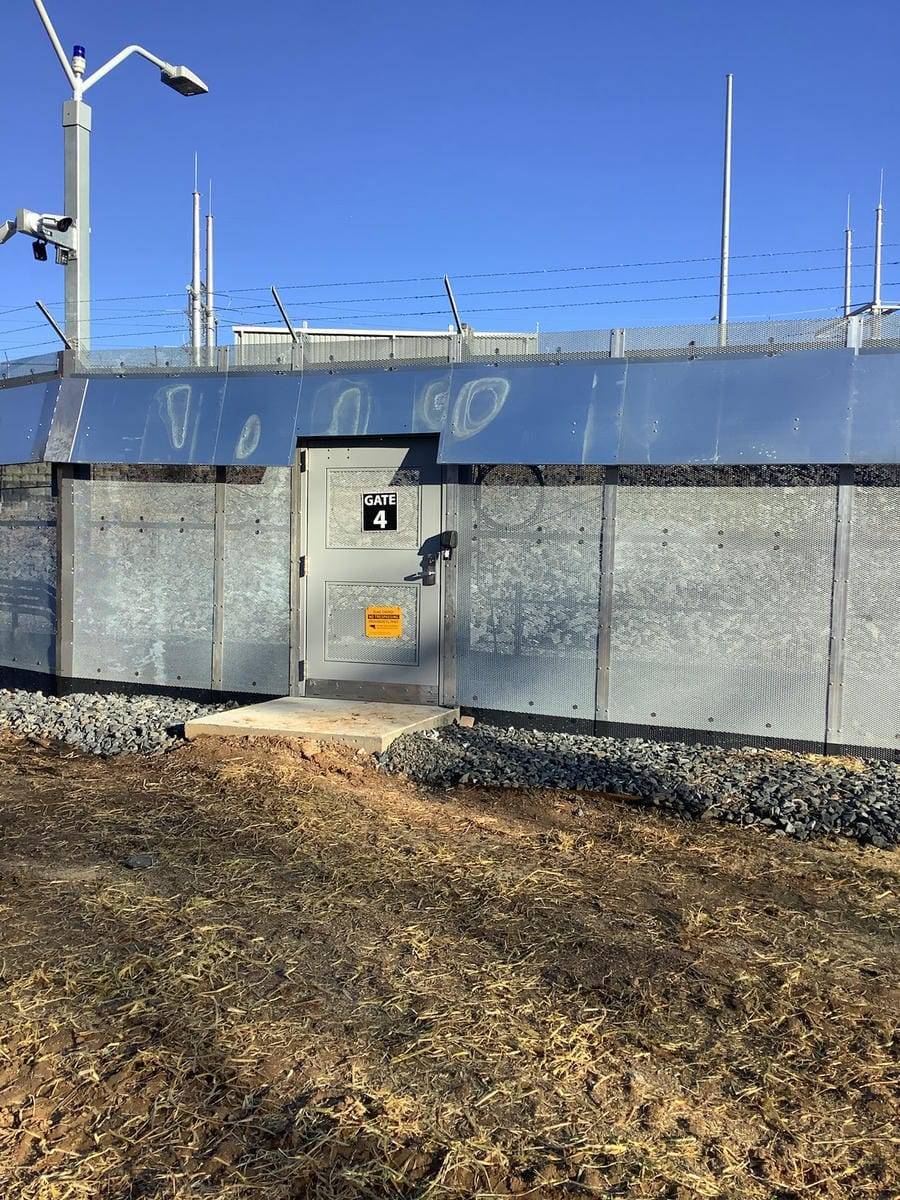

• 4 ft. personnel gate at NE entrance
• Fence mounted intrusion detection system (IDS)
• Video surveillance system with Field of View for both interior and exterior of fence line
• 12' X 20' Security Enclosure with AC Panel, Security and Communication racks
• Replaced existing control enclosure doors with reinforced steel security doors and hardware
• Replaced existing windows with UL Level 4 glass or glass block
• Associated grounding of ground tails, guard rails, fence post and panel to panel connections

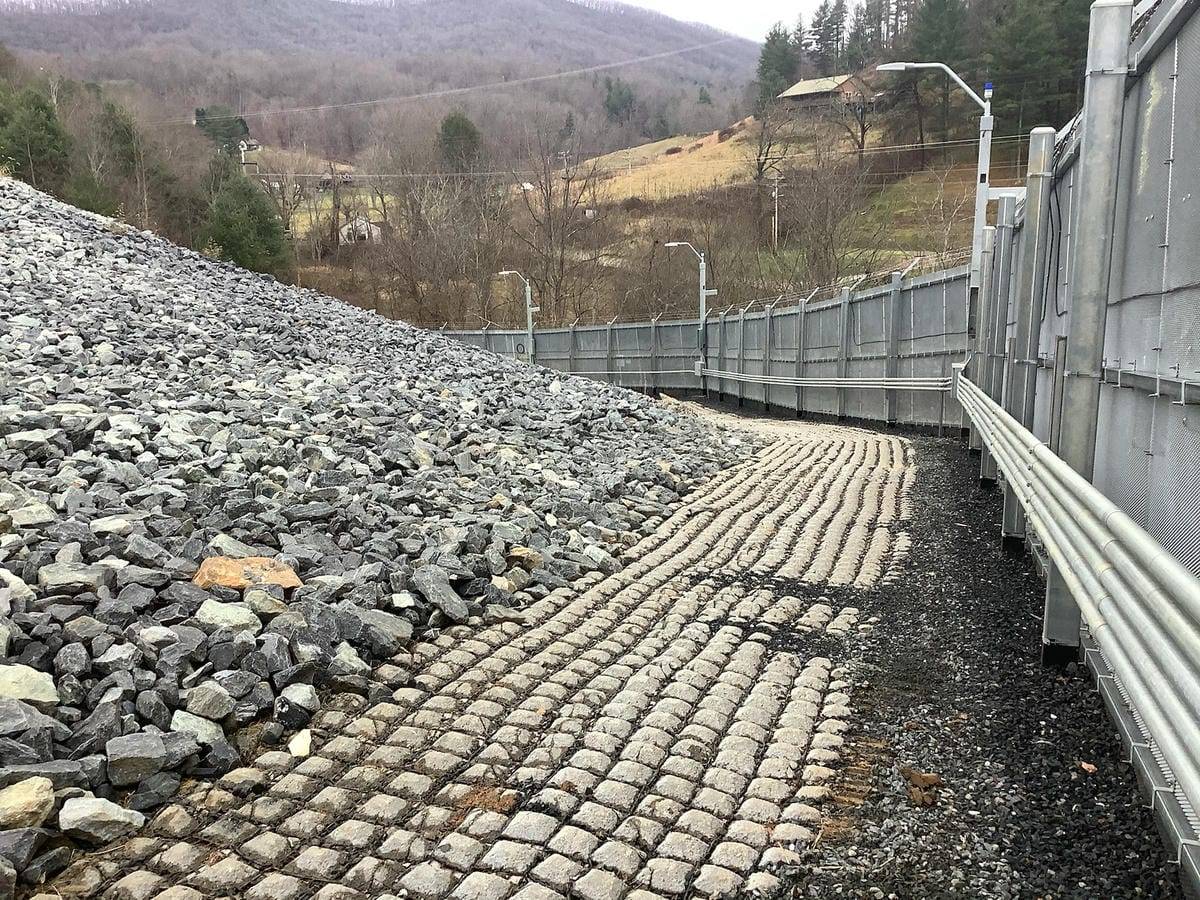

• Installation of 5 ft apron of #57 stone on the interior side of the fence
• Miscellaneous grading per engineered drawings
